48V 20A IP67 Waterproof Onboard LiFePO4 Battery Charger for Golf Carts

This 48V 20A IP67 onboard LiFePO4 battery charger is designed for golf carts using 48V or 51.2V lithium iron phosphate battery packs. It provides a rated output of 58.4V DC and 20A for 16S LiFePO4 batteries.

The charger is designed for permanent onboard installation, helping users charge the golf cart without carrying a separate portable charger. Its aluminum housing, mounting brackets and IP67 protection make it suitable for demanding golf cart operating environments.

Different wiring harnesses and connector configurations are available. A lead for the golf cart LED indicator can be added when required. The charger interlock connector, AC input connector, battery terminals, cable length and connector type can also be customized. Unnecessary cables or connectors can be removed according to the customer’s installation requirements.

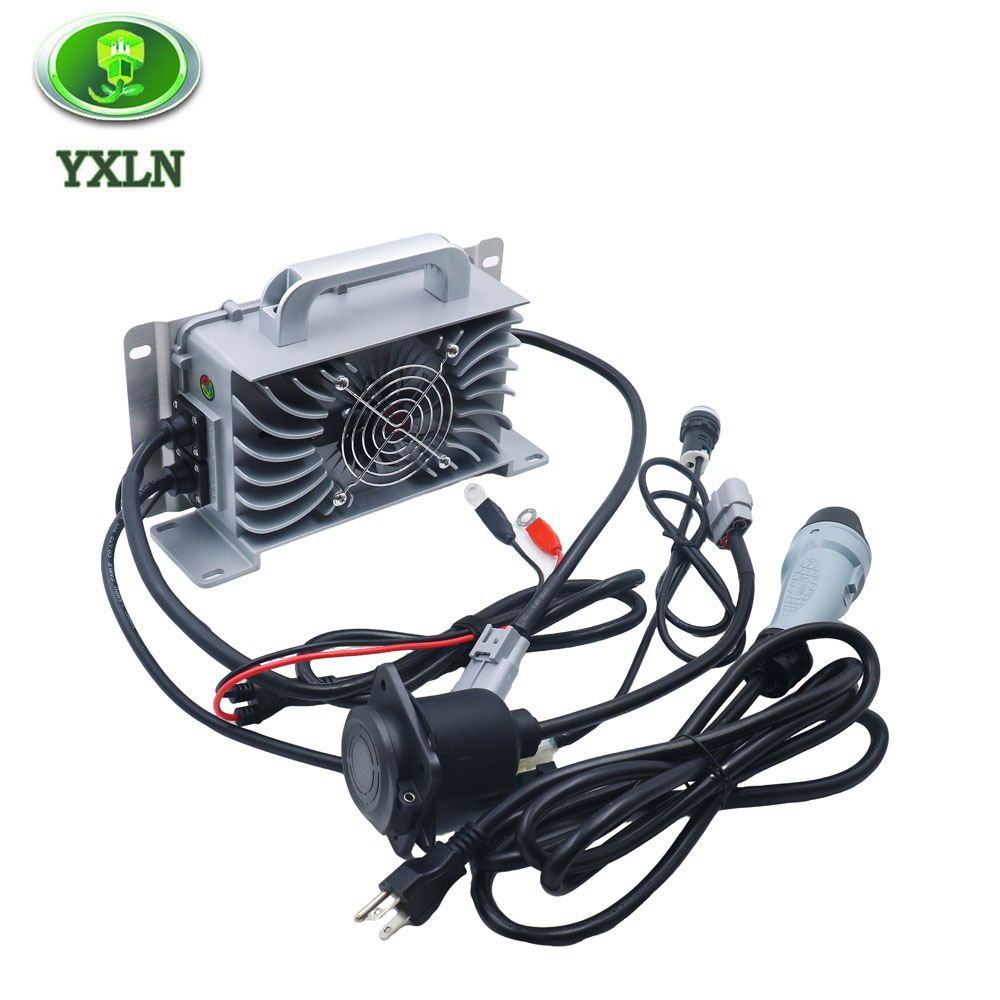

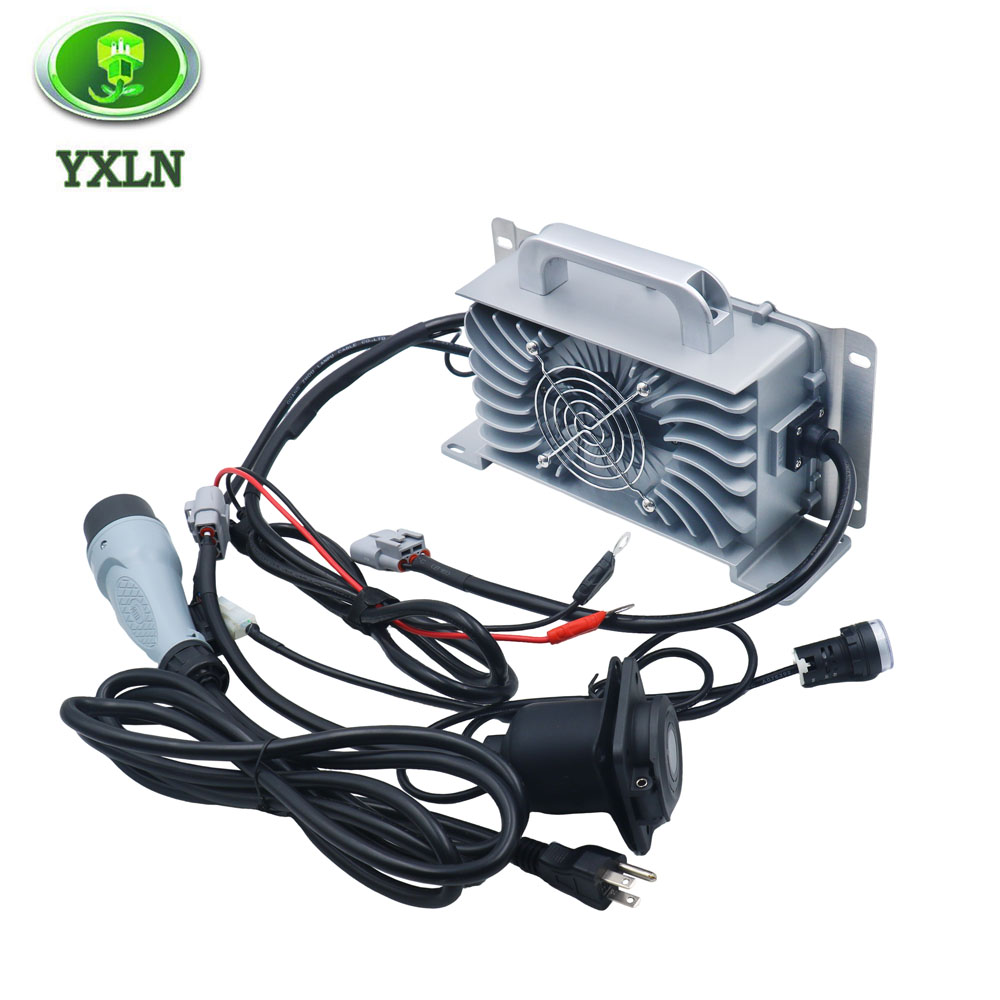

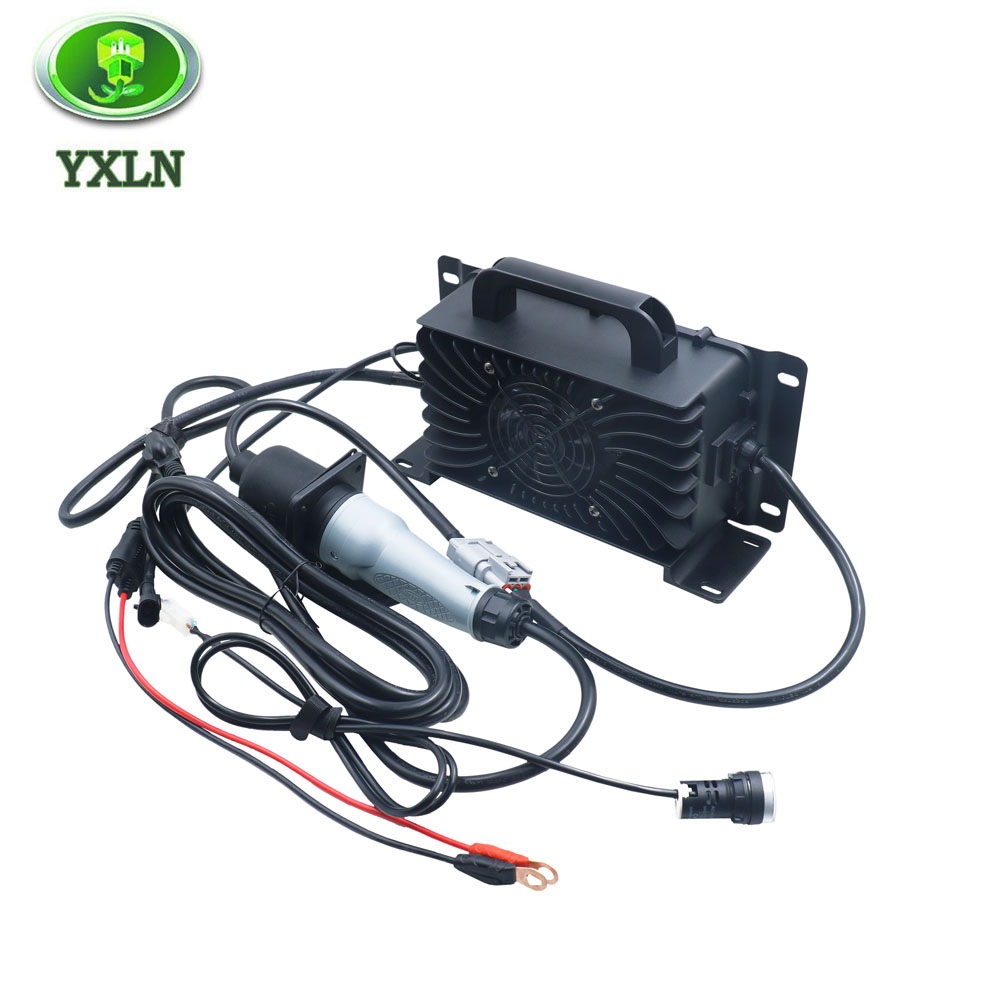

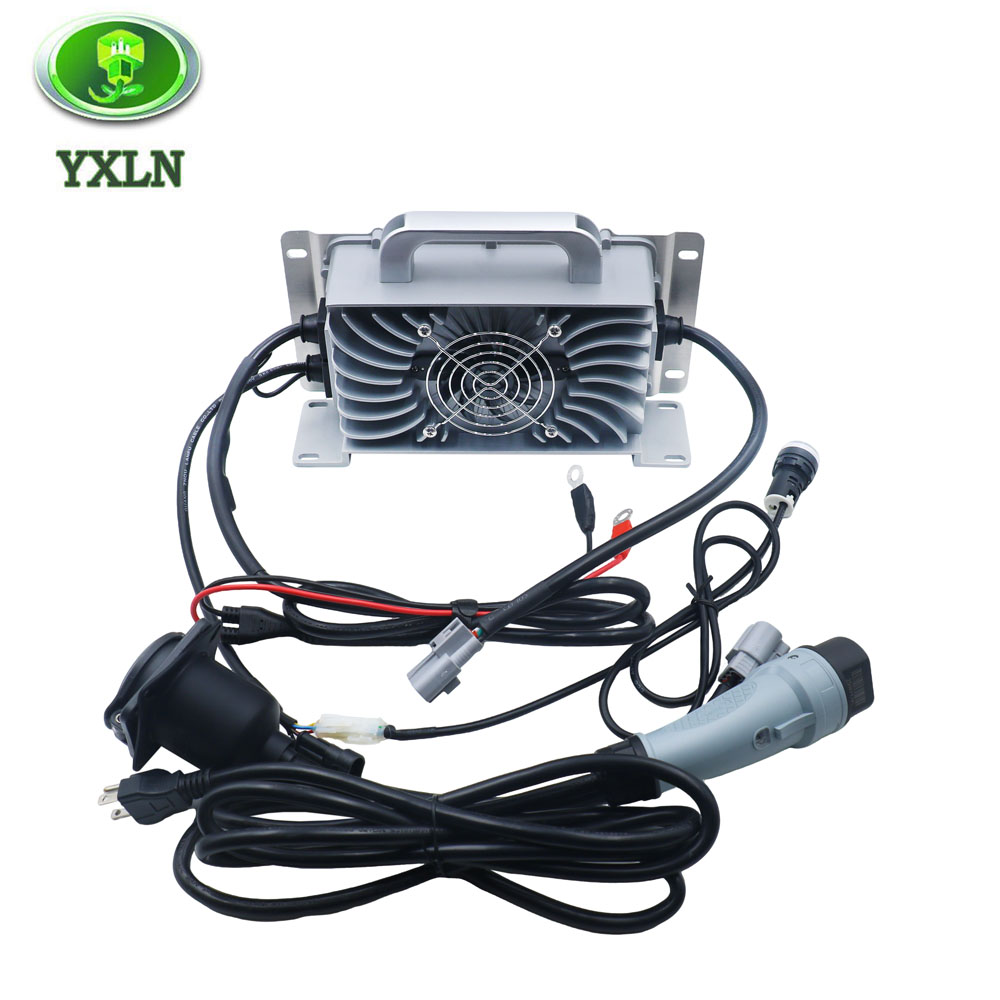

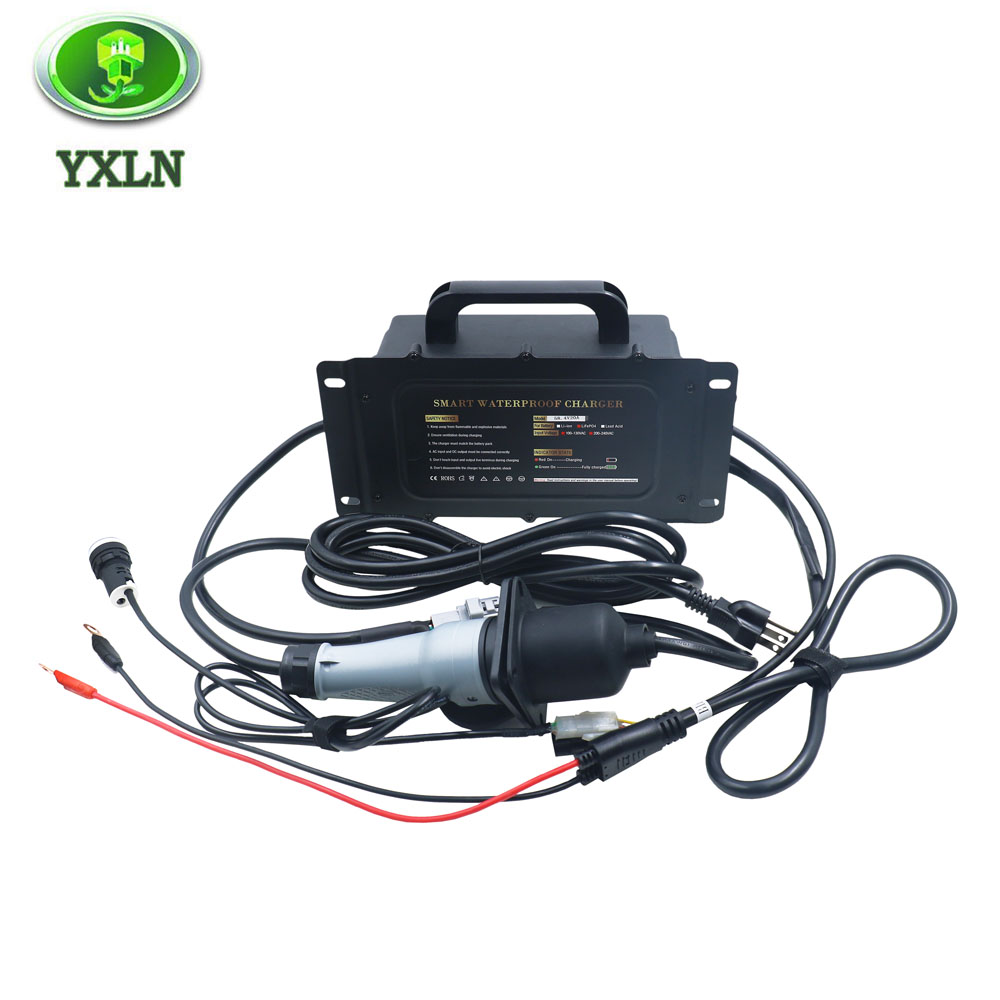

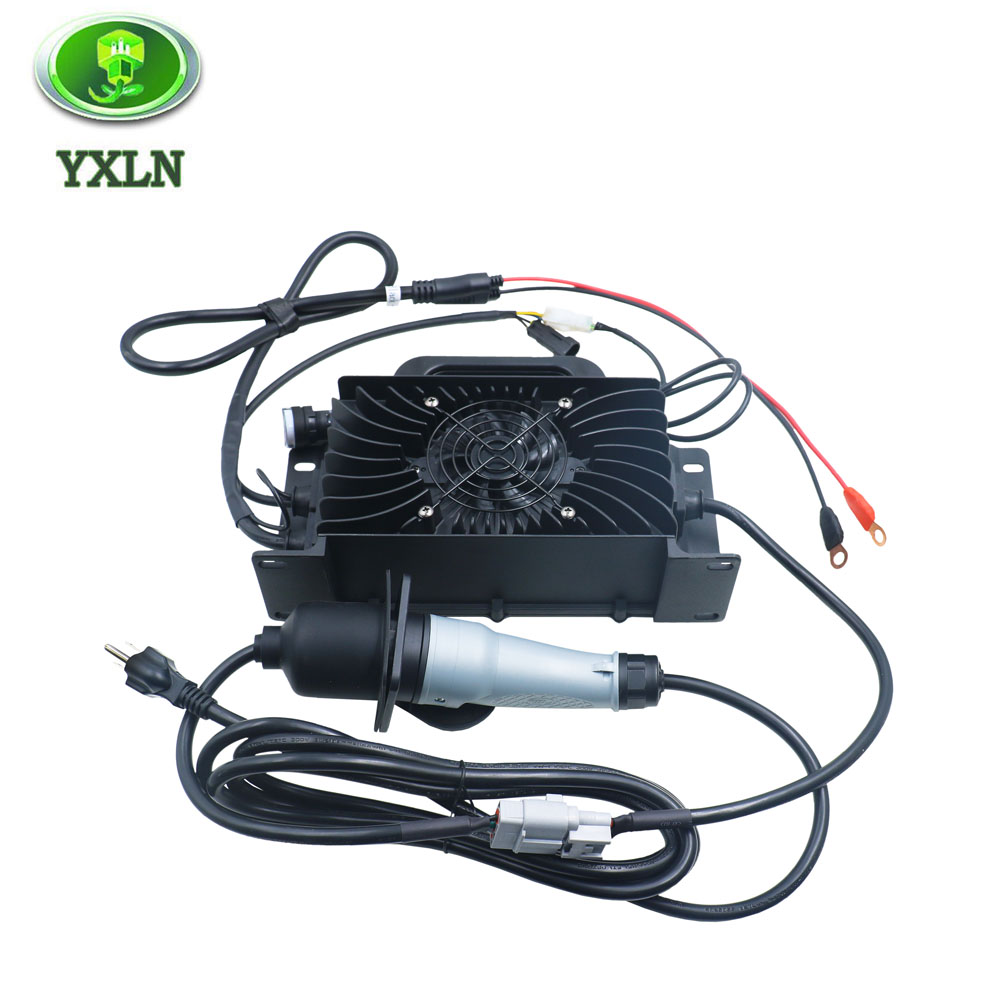

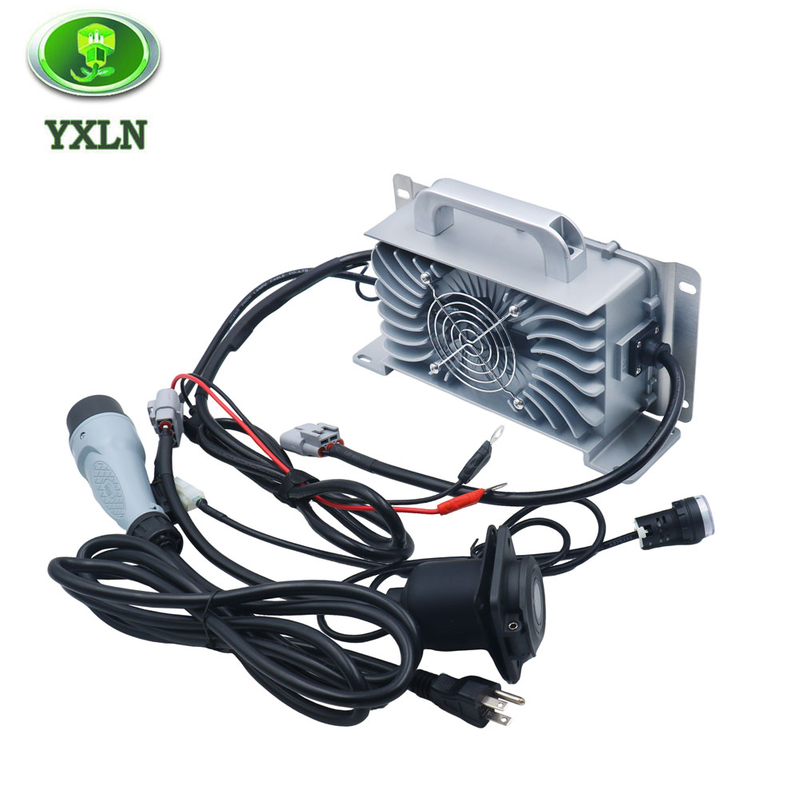

The product images show sample wiring configurations. Before production, please provide the battery voltage, maximum charging voltage, battery capacity, BMS charging-current limit, connector details, cable length and interlock requirements.

Availability:



Inquire Add to Basket

Model:
YX-1200WP
Brand:
YXLN

Product Description

Brief Description :

This 48V 20A IP67 onboard LiFePO4 battery charger is designed for golf carts using 48V or 51.2V lithium battery packs. It provides a 58.4V charging output and supports customized wiring, AC input connectors, interlock connectors and golf cart LED indicator leads to meet different installation requirements.

Technical Specifications

Product Type: Onboard LiFePO4 Battery Charger

Application: Electric Golf Carts and Golf Buggies

Nominal Battery Voltage: 48V / 51.2V

Battery Type: LiFePO4

Battery Configuration: 16S LiFePO4

Rated Output Voltage: 58.4V DC

Rated Output Current: 20A

Installation: Onboard / Fixed Mount

Watrerproof rate: IP67

Housing Material: Aluminum

Housing Options: Black or Silver

Battery Connection: Ring Terminals or Customized Connector

AC Input Connection: Customized According to Customer Requirements

Charger Interlock: Optional / Customizable

Golf Cart LED Indicator Lead: Optional

Cable Length: Customizable

Charging Profile: Customized According to the Confirmed Battery Specifications

OEM / ODM Service: Available

We also can make 48V lead acid , gel , agm on board chargers , Looking for a customized 48V onboard charger for your golf cart project ?

Send us your battery specifications, BMS charging-current limit, connector photos, pin definition and cable-length requirements. Our team will check the charging parameters and wiring configuration before production, welcome to inquiry and email to us , thanks !
