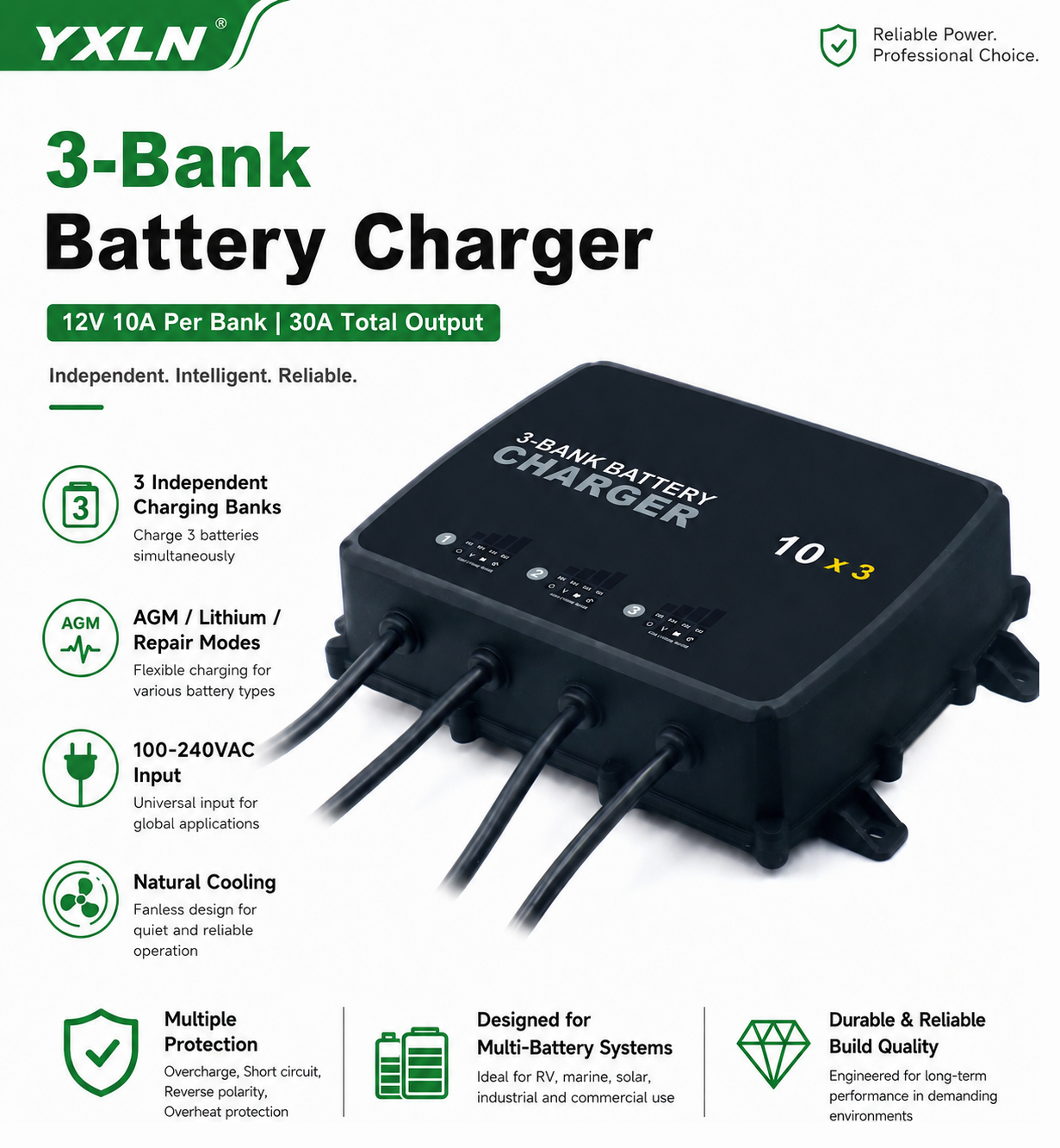

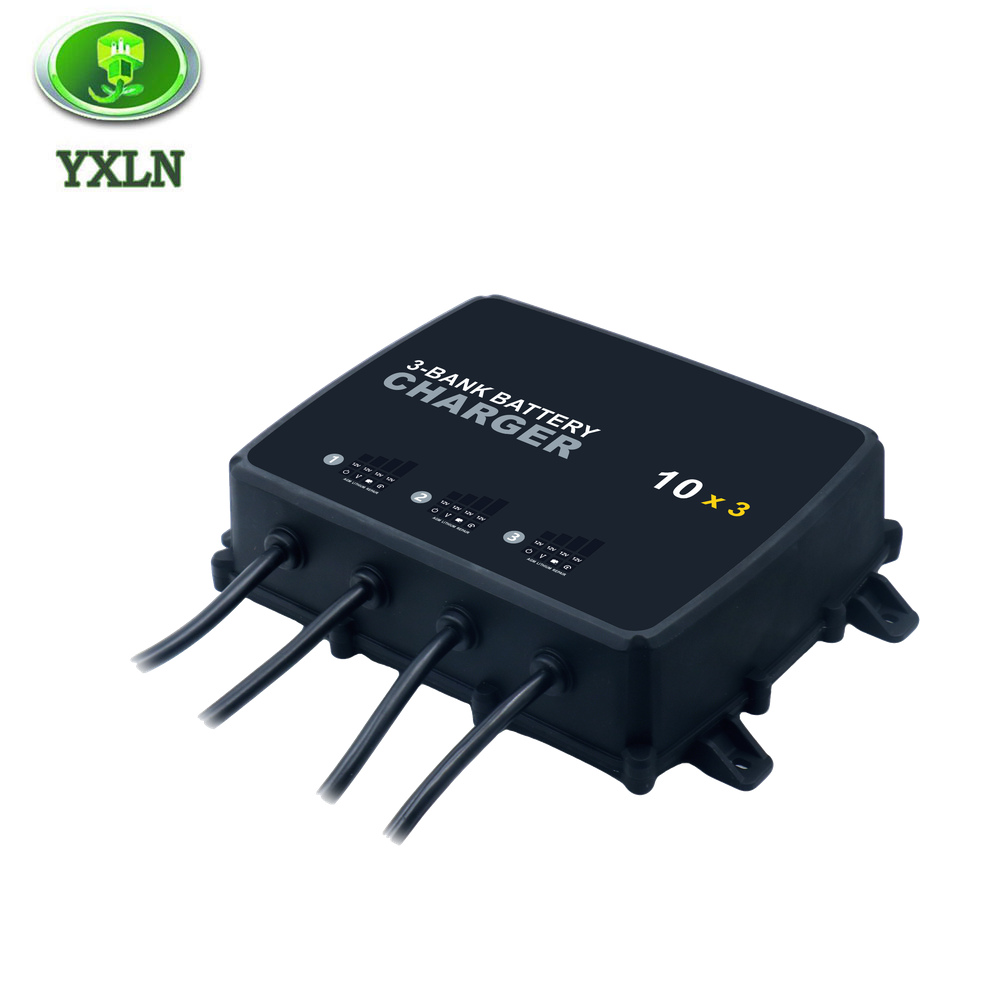

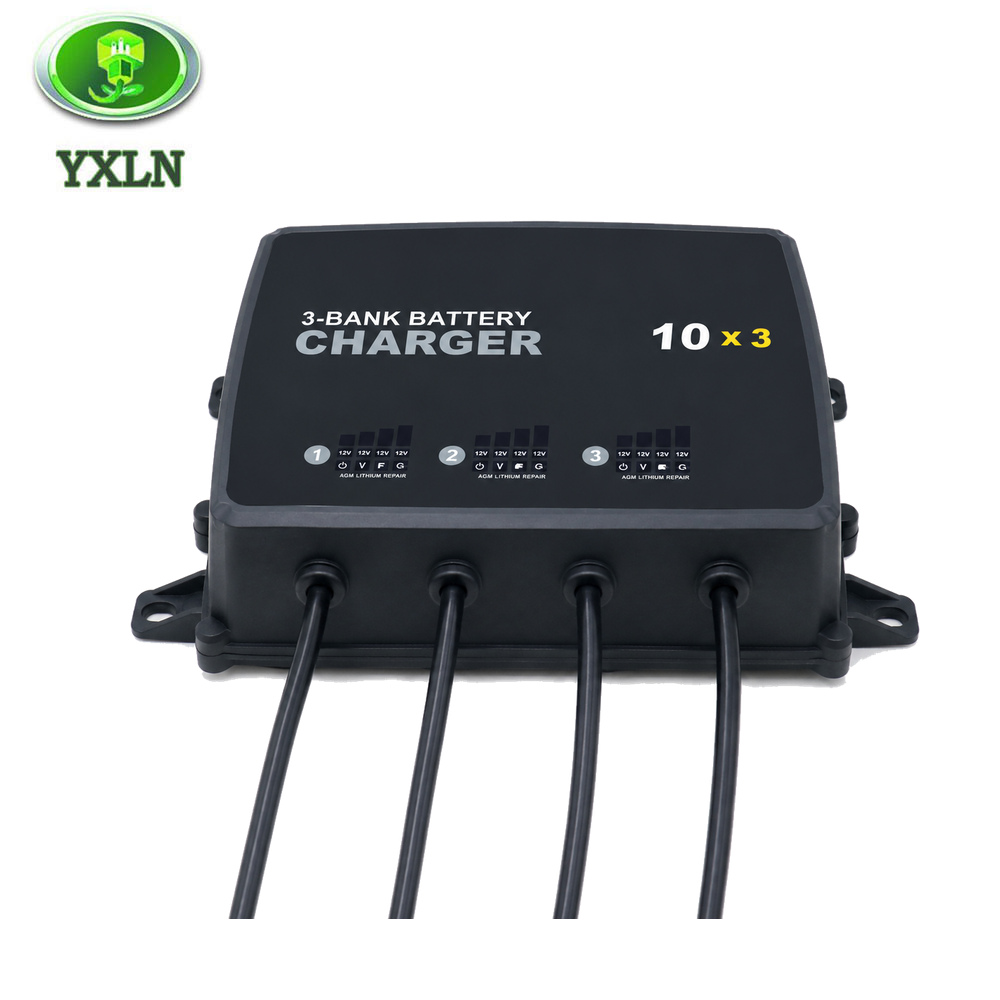

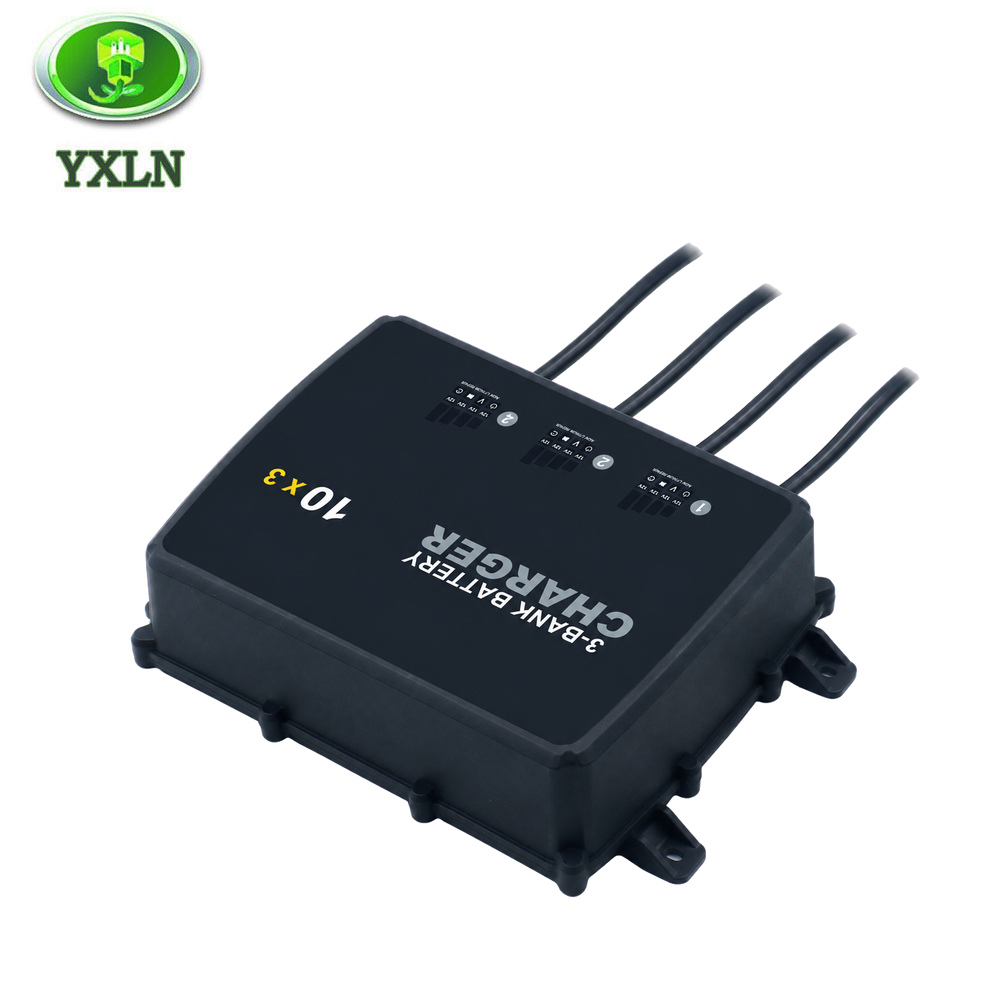

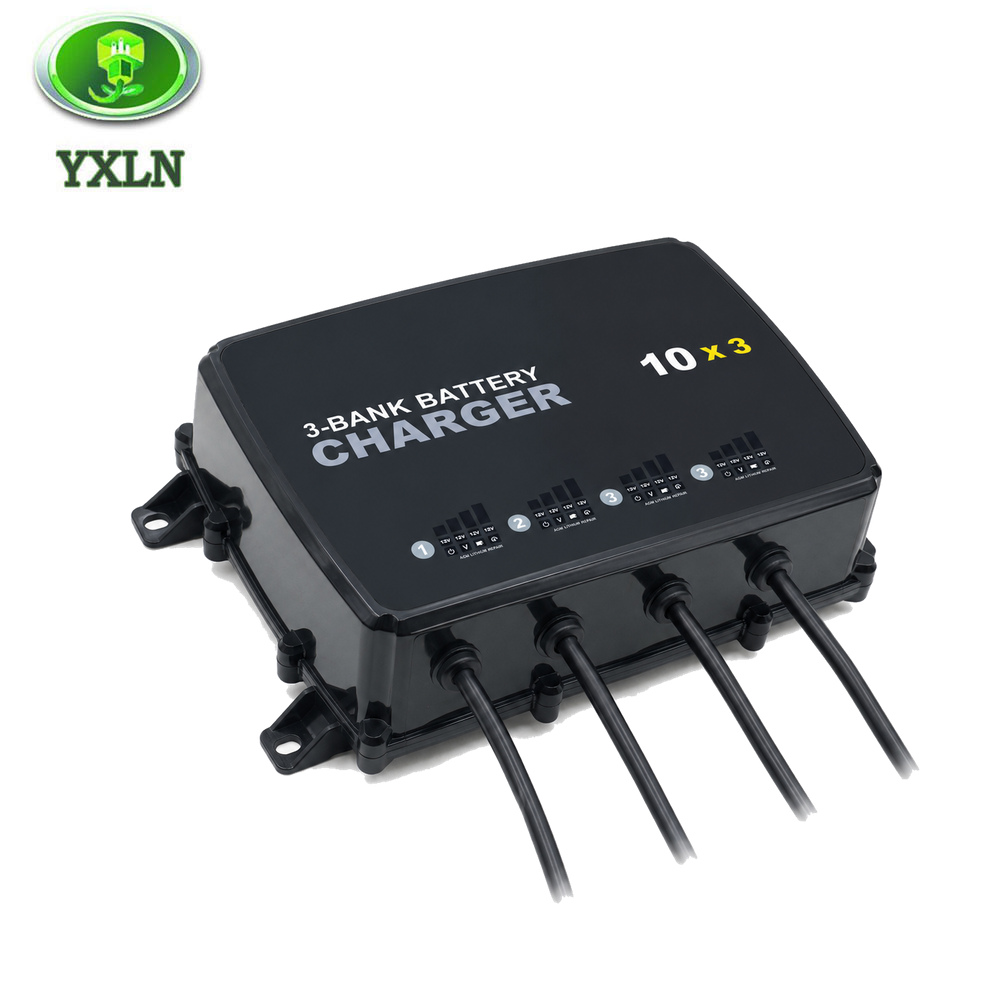

3-Bank 12V Battery Charger 10A Per Bank with Independent Outputs

Built for Multi-Battery Charging

Unlike a single-output charger, the YX-450W-3P provides three separate 12V charging outputs. This allows each connected battery to follow its own charging process, making the charger suitable for projects where several 12V batteries need to be charged from one AC power source.

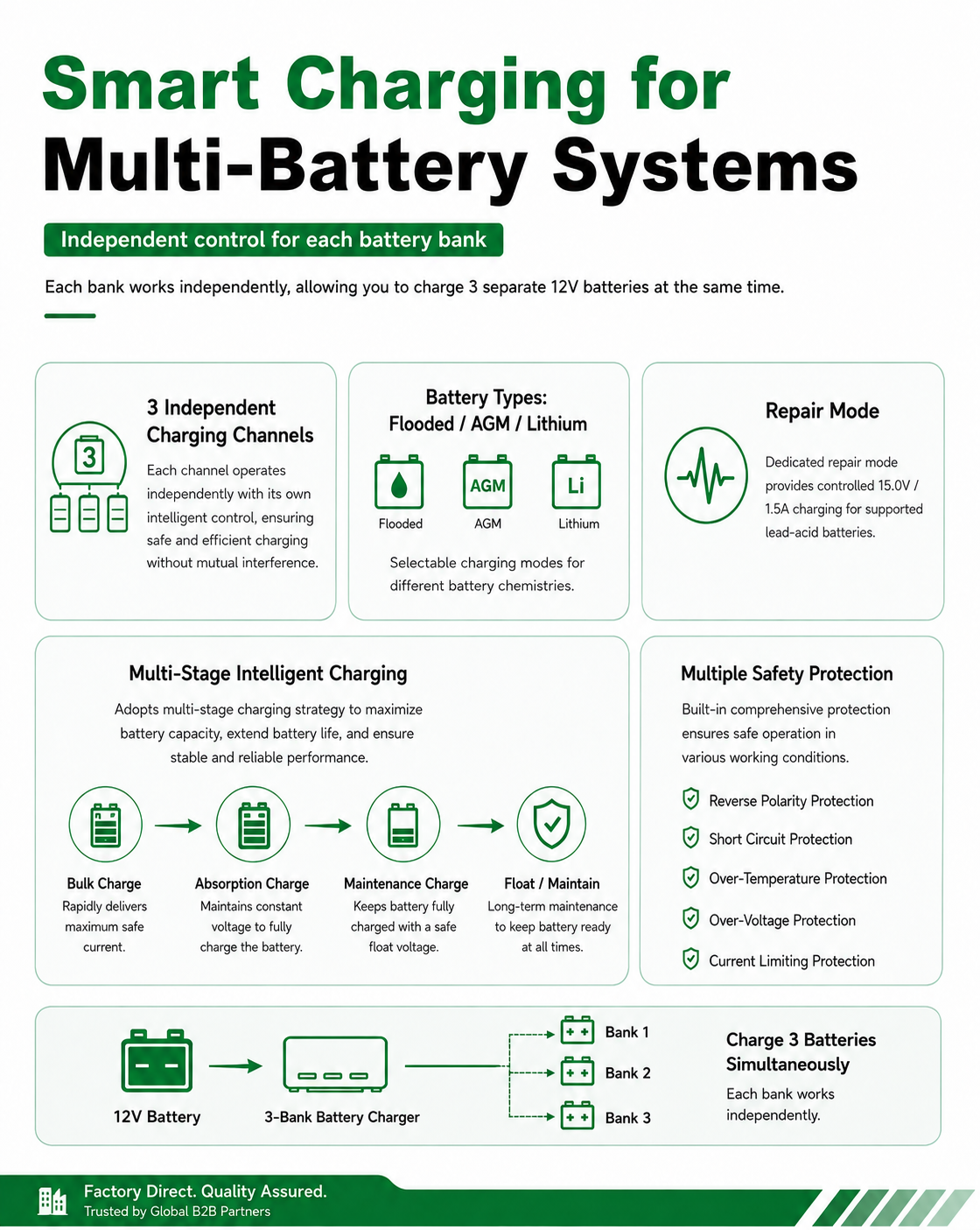

Charging Profiles for 12V Batteries

Flooded and AGM charging profiles continue with float maintenance after the main charging cycle. Lithium charging output stops after the charging completion condition is reached.

Charging Status at a Glance

Each bank provides individual charging and fault indication. Charging progress can be monitored through 25%, 50%, 75% and 100% status indicators, helping operators quickly understand the condition of each connected battery.

Multi-Battery System Compatibility

This model provides three independent 12V charging outputs. It is not a single-output 36V battery charger.

For systems using multiple 12V batteries in series or with special wiring configurations, please send us the battery connection diagram before ordering. Our technical team can review the system configuration and confirm charger compatibility.

Configurations for OEM Projects

Different equipment projects may require different cable and connection configurations. For OEM orders, the following items can be discussed according to your installation requirements:

AC plug type · AC cable length · DC cable length · ring terminal configuration · product label · user manual · program .packaging

Have a different battery system?

Send us your battery specifications and application details. YXLN can help evaluate a suitable charging solution for your equipment or OEM project.

Contact us for samples, technical evaluation and project quotations. Thanks !
