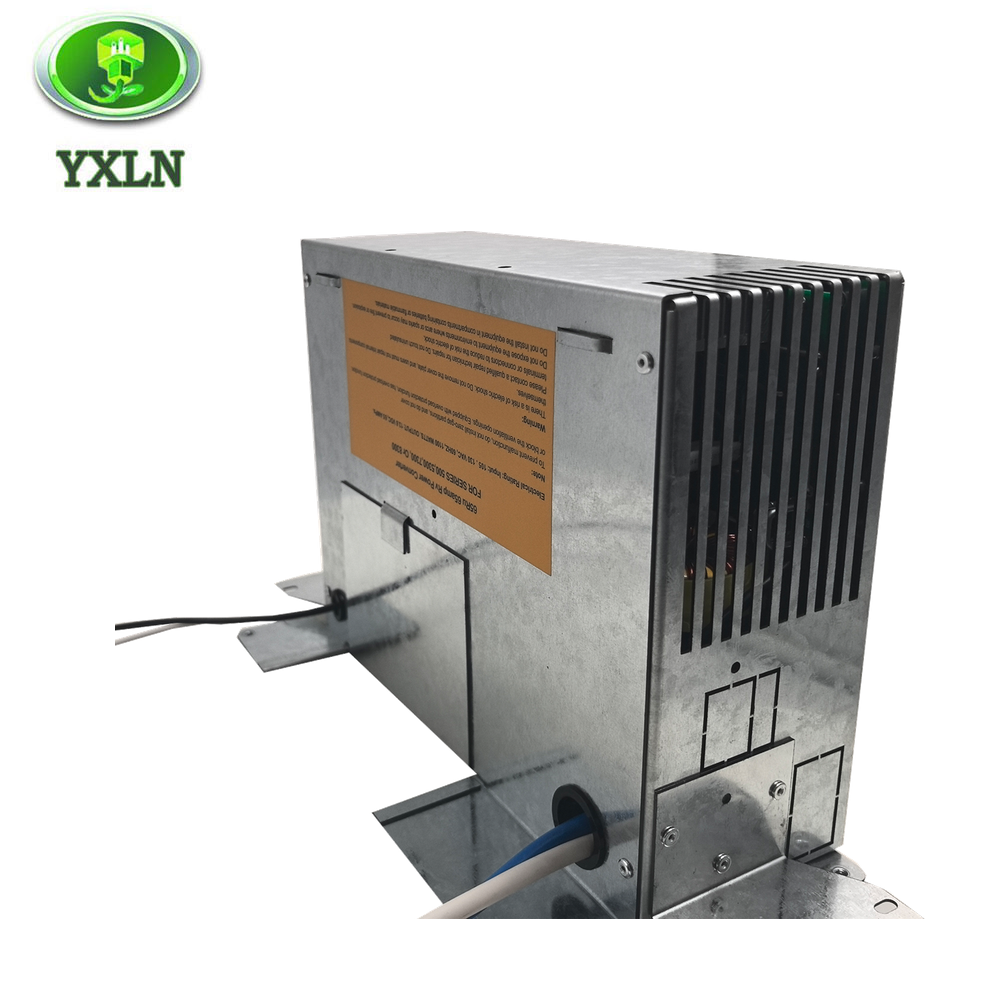

YX-1200SRseries

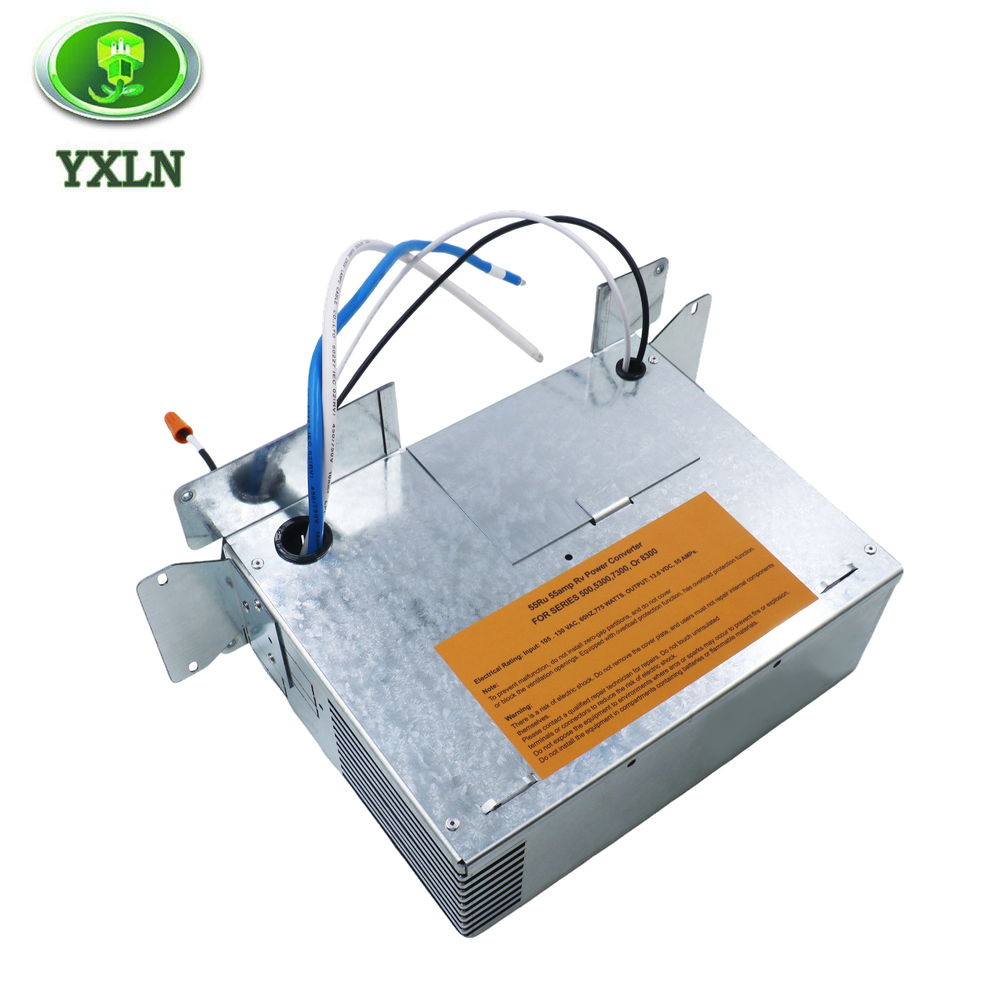

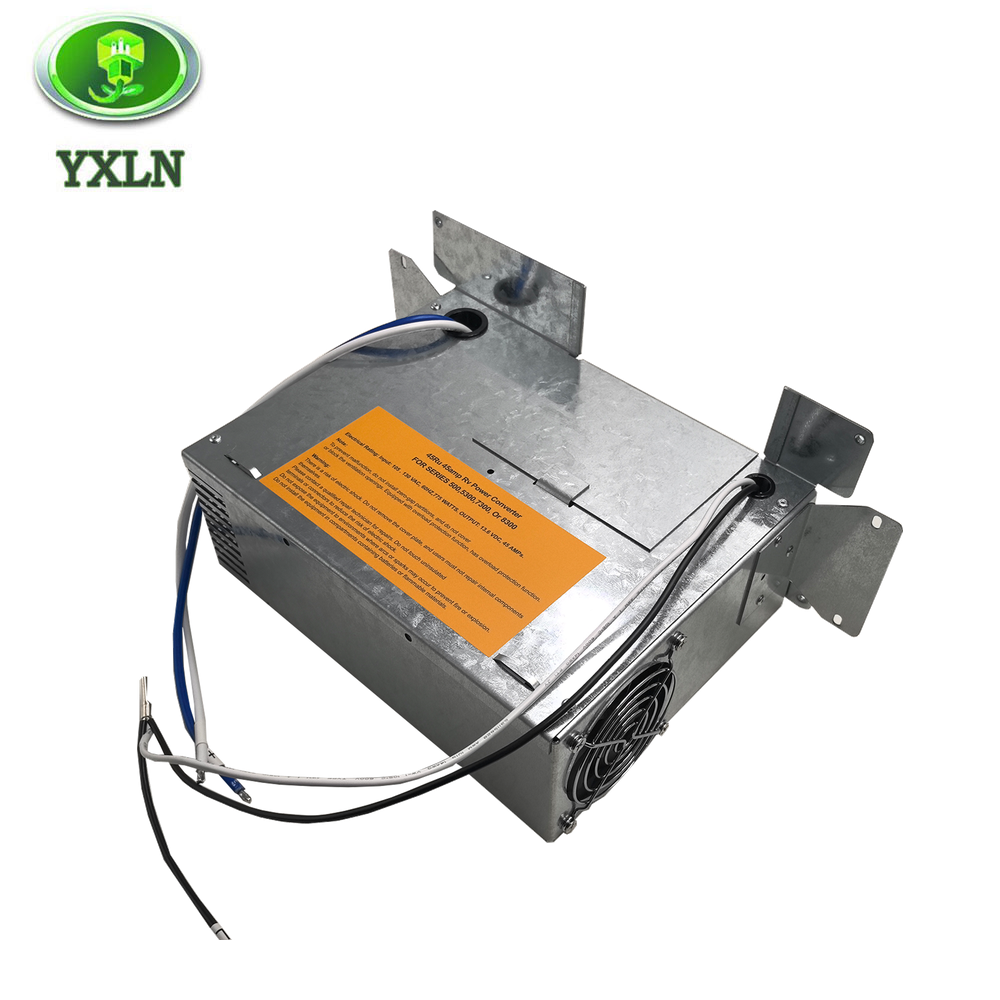

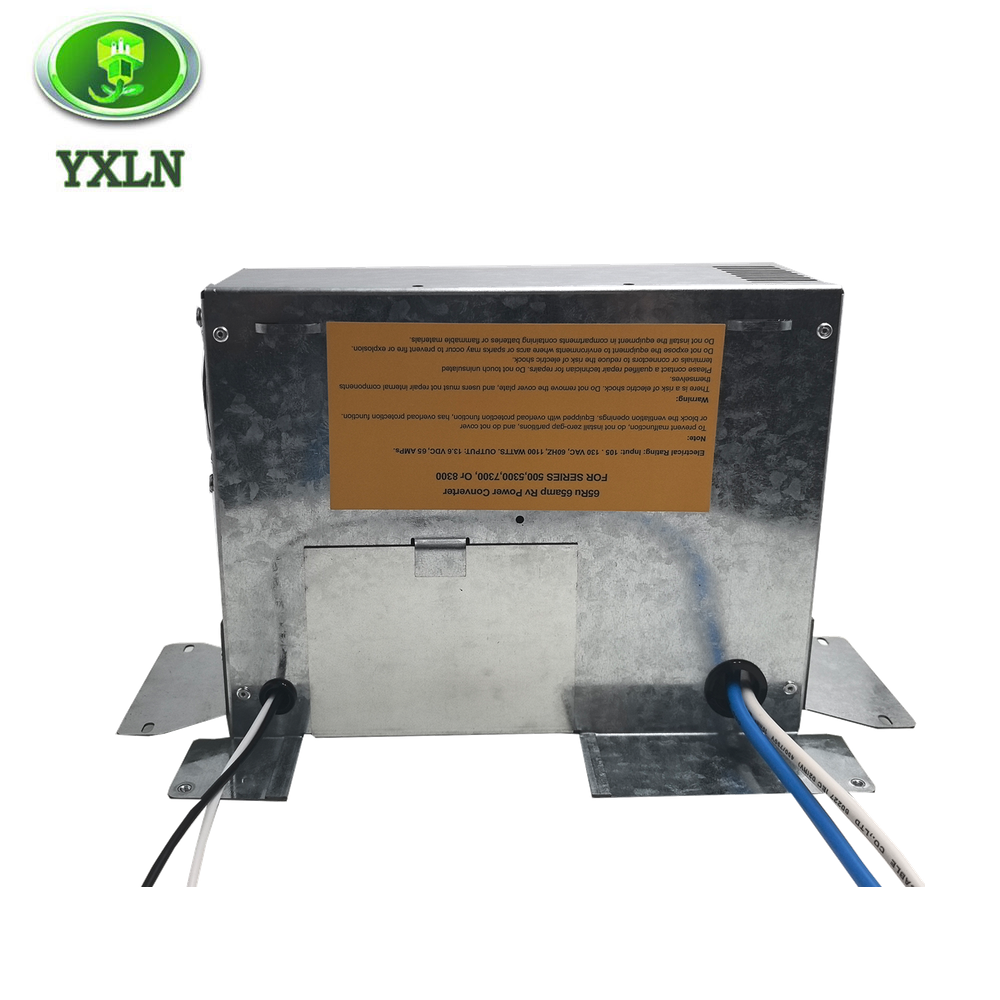

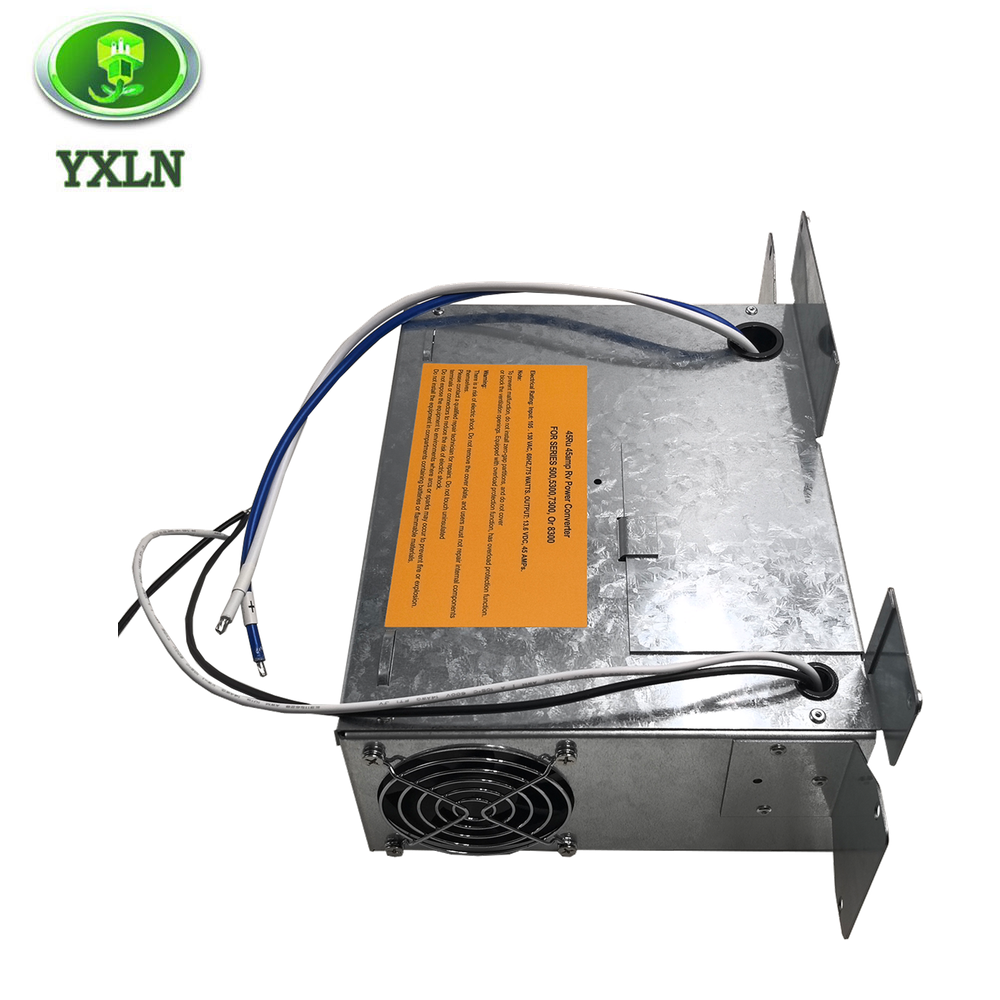

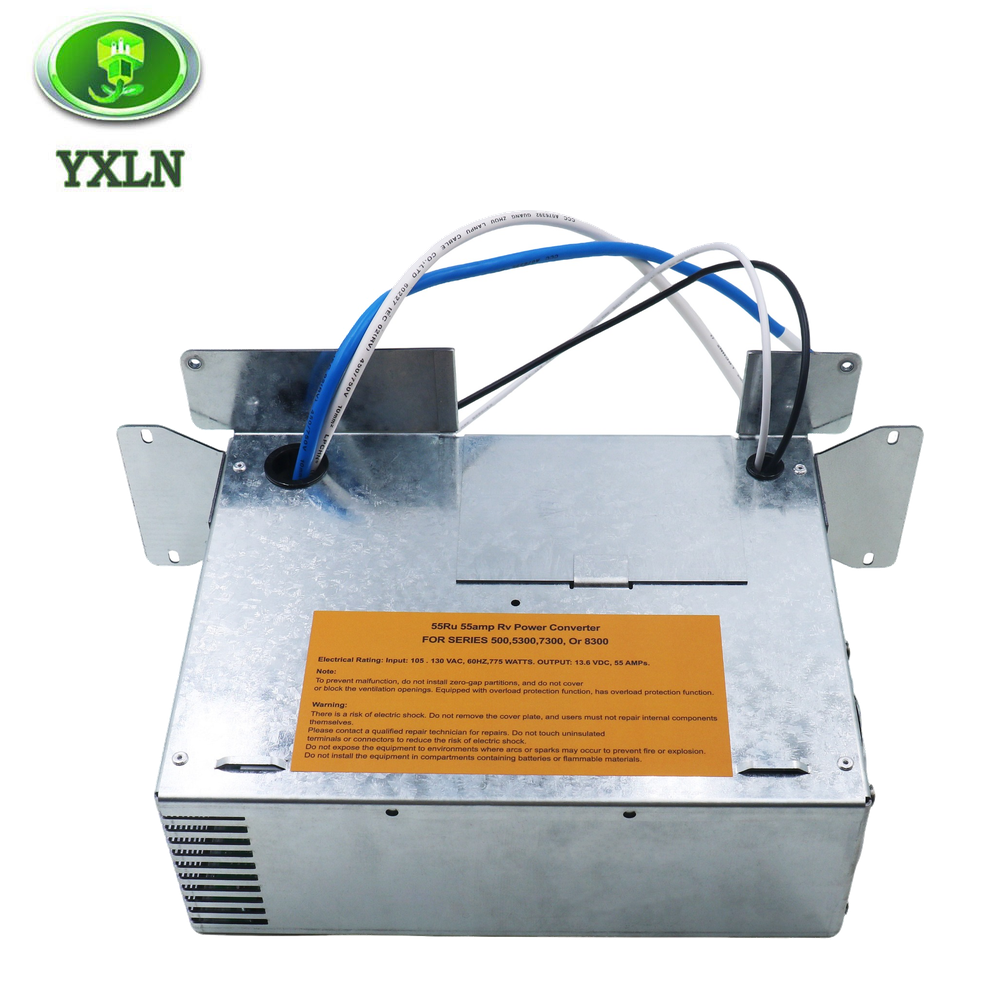

RV Power Converter Replacement for 7300 & 8300 Series
The YXLN 1200SR Series is designed for RV power converter replacement applications in 7300 and 8300 Series power centers.

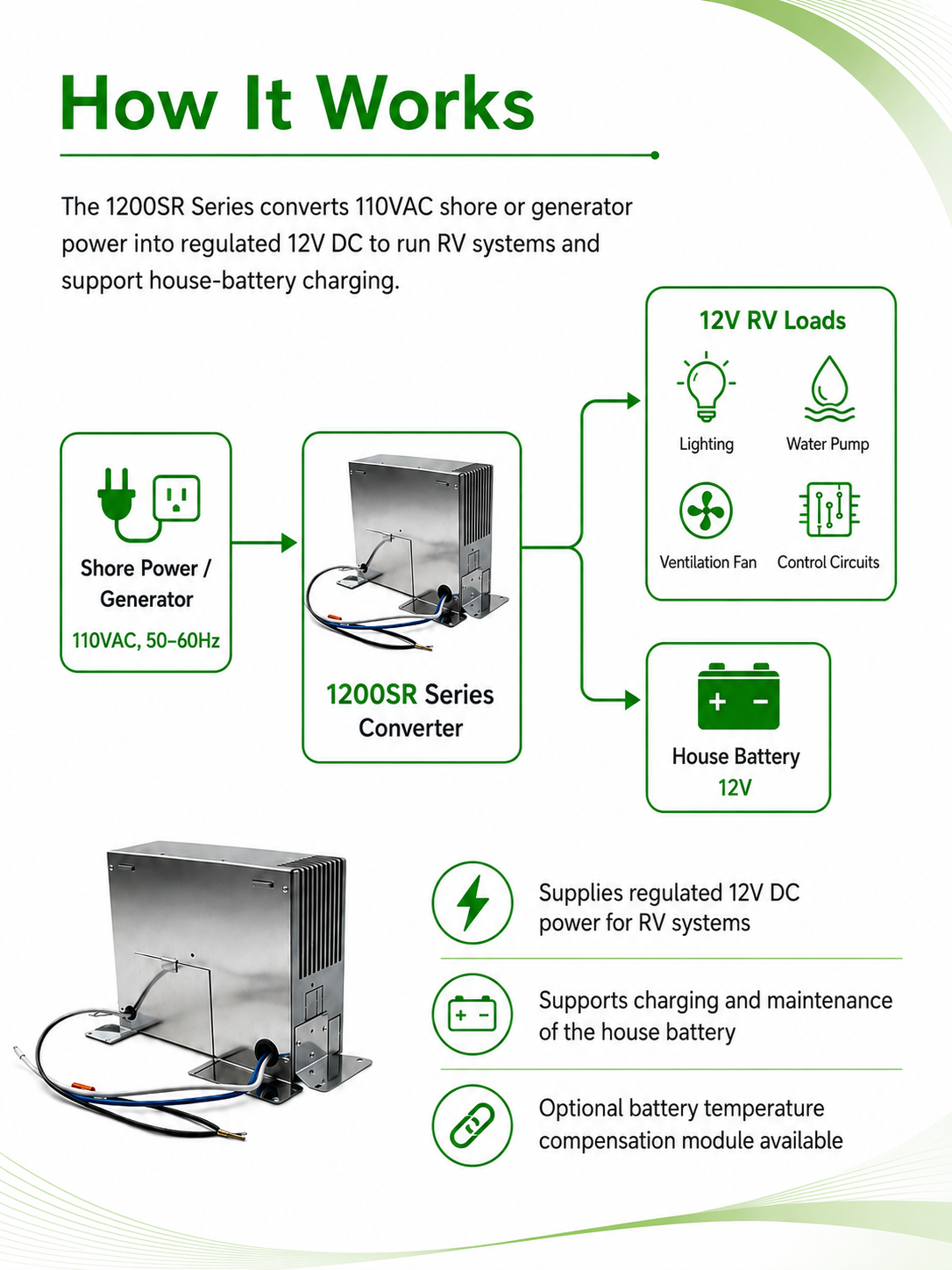

Available in 45A, 55A and 65A output versions, the converter supplies regulated 12V DC power for onboard RV electrical equipment while supporting the RV house-battery system.
Unlike a conventional standalone battery charger, the converter can also supply 12V DC loads without a battery connected.
Choose the Right Output for Your RV
YXLN Model | Output Current | Max. Output Power | Replacement Reference |
|---|---|---|---|
1245SR | 45A | 610W | 7345 / 8345 class |
1255SR | 55A | 750W | 7355 / 8355 class |
1265SR | 65A | 880W | 8365 class |
The 45A, 55A and 65A versions allow RV owners, service companies and distributors to select the appropriate converter according to the original power-center rating and DC load requirements.
Designed for RV Converter Replacement
The SR Series is designed for use as a replacement converter section in 7300 and 8300 Series RV power centers.
This makes the series suitable for:
RV converter replacement
Motorhomes
Travel trailers
Campers
RV repair and service
RV parts distributors
OEM and aftermarket RV power-system projects
Replacement Note:

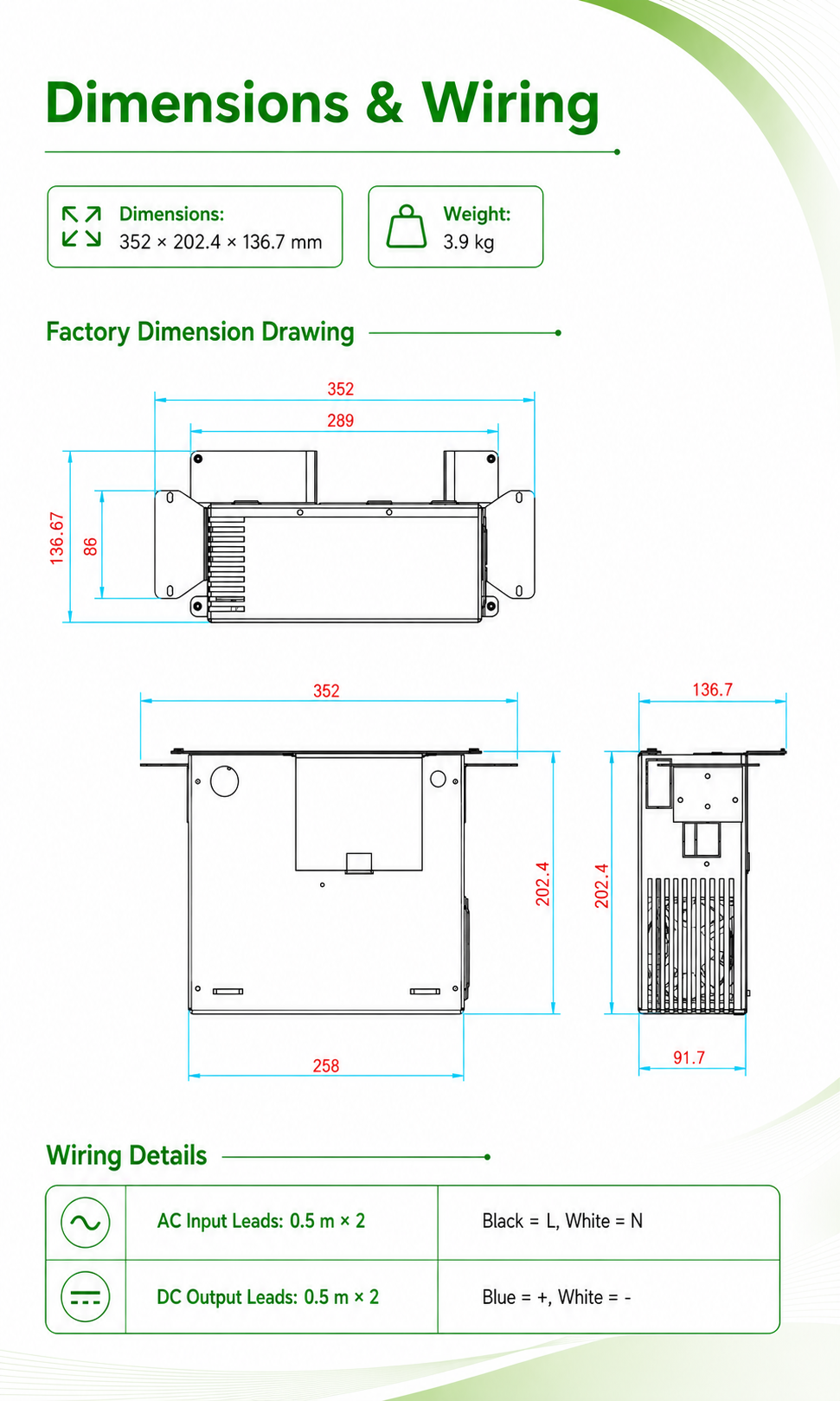

Please verify the original converter model, output rating, installation dimensions and wiring configuration before replacement.
Looking for an RV Converter Replacement ?
Tell us your existing converter model and output rating.
YXLN can help you select the appropriate 45A, 55A or 65A replacement converter for your RV power-system application.
Available Models:
1245SR – 45A
1255SR – 55A
1265SR – 65A
Contact YXLN for specifications, samples and OEM inquiries. Thank you !
