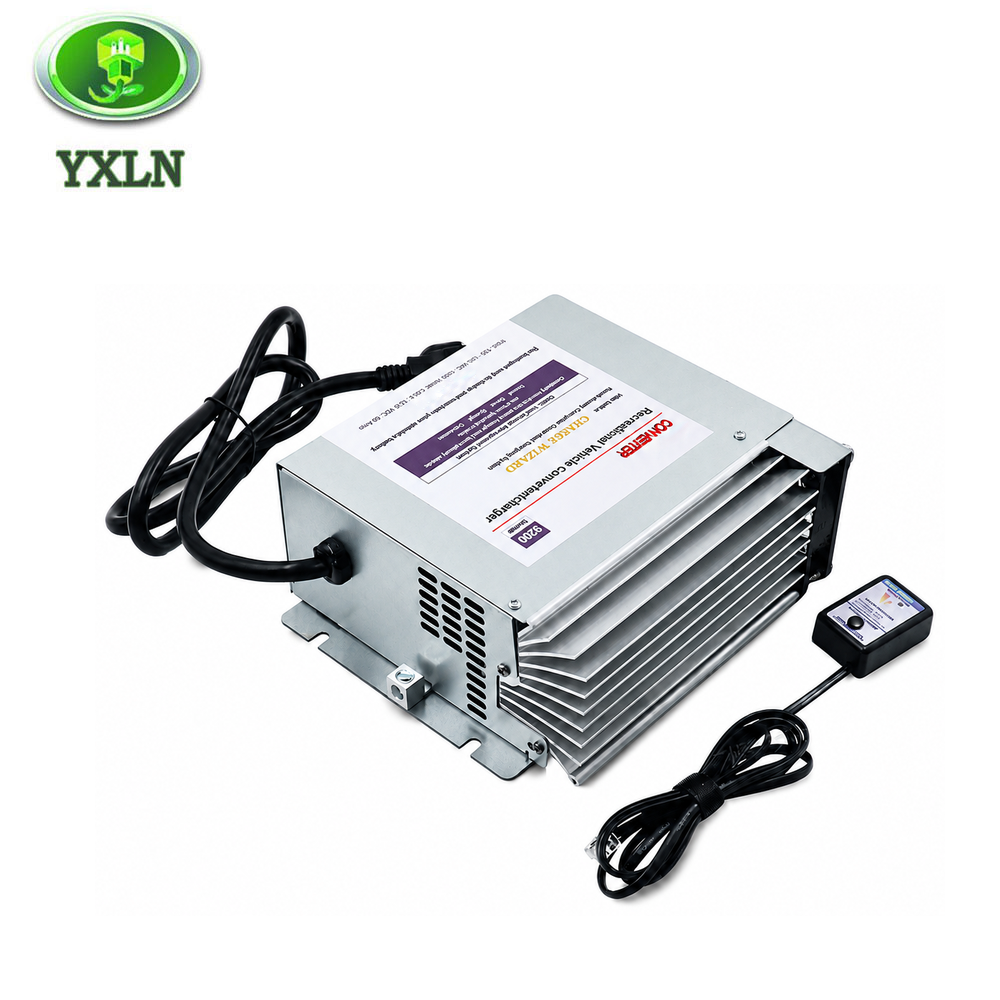

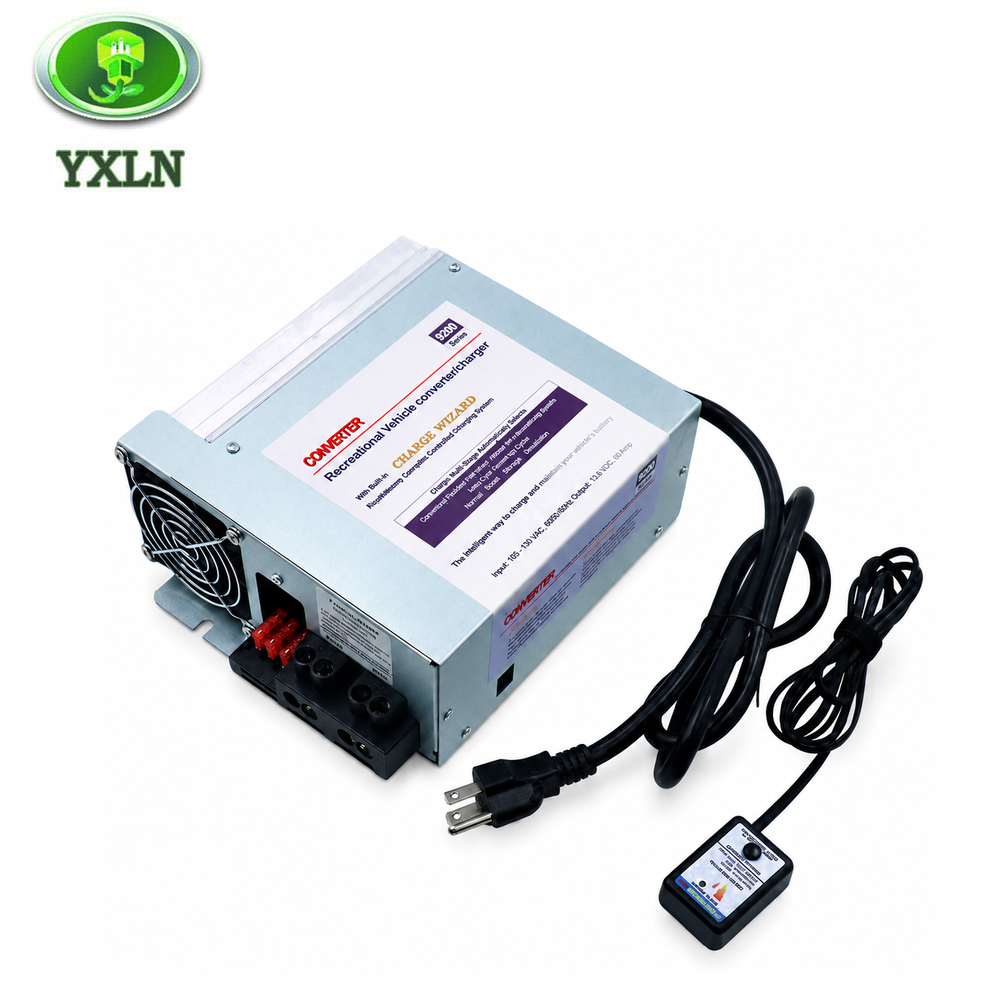

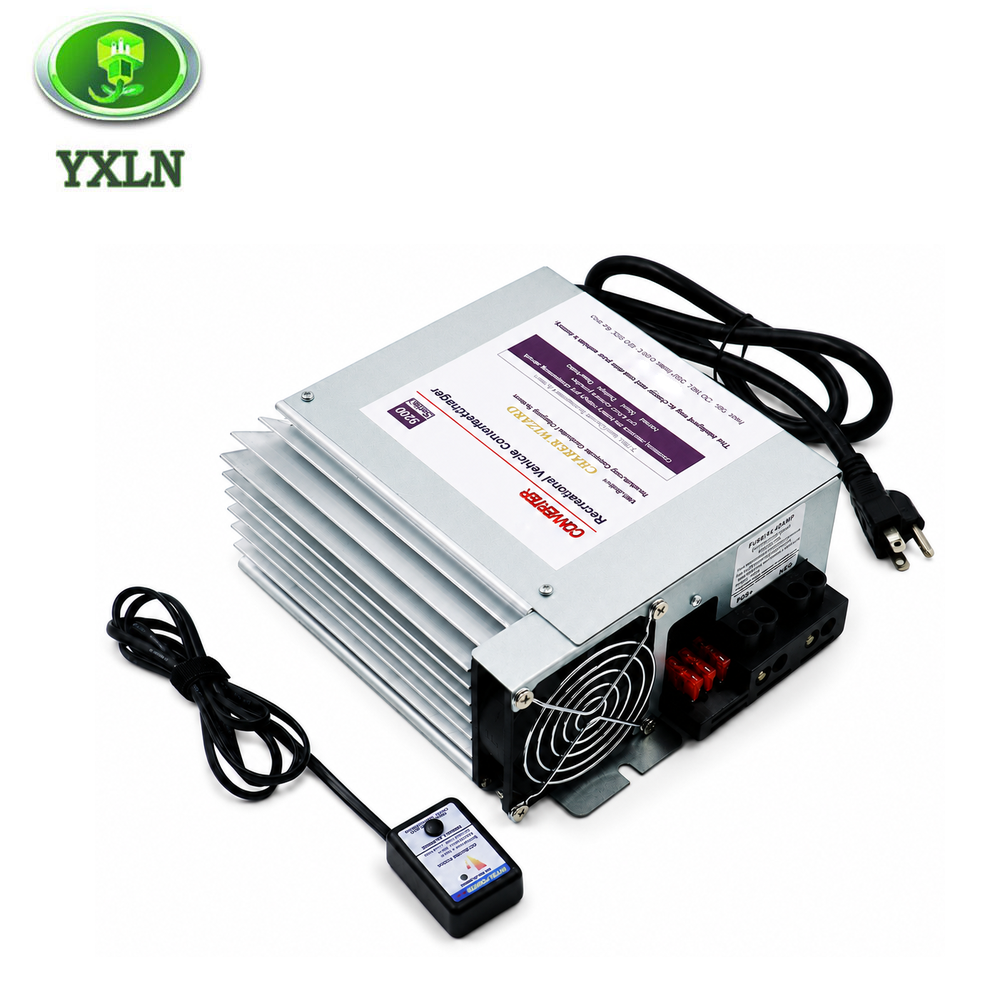

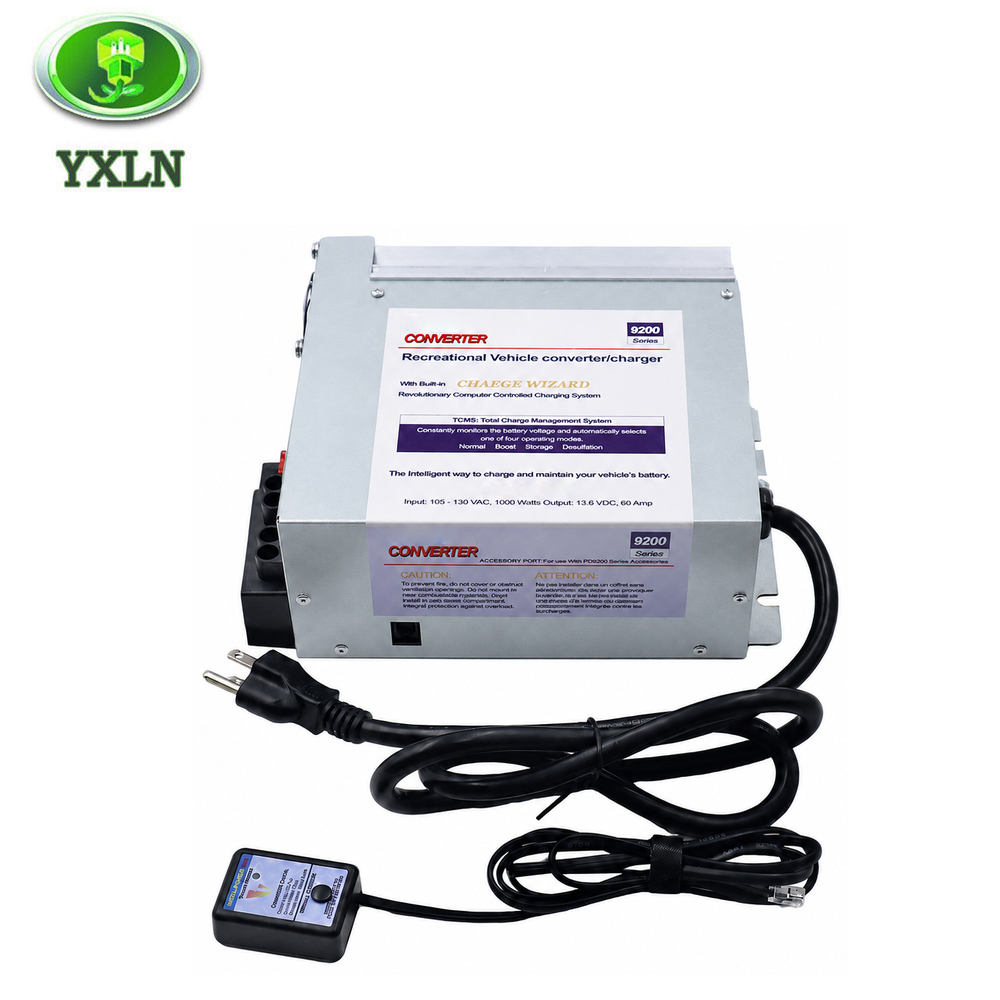

PD9200 Series 12V RV Power Converter Charger – 30A / 45A / 60A / 80A

The PD9200 Series is a 12V RV power converter/charger designed for flooded lead-acid (FLA) battery systems. Available in 30A, 45A, 60A and 80A models, it operates from 100–130VAC input and features intelligent multi-stage charging, a built-in Charge Wizard and a remote pendant for charging mode control. Designed for RV, motorhome, camper and travel trailer 12V electrical systems.

Availability:



Inquire Add to Basket

Model:
YX-PD9200series

Product Description

PD9200 Series RV Power Converter / Charger

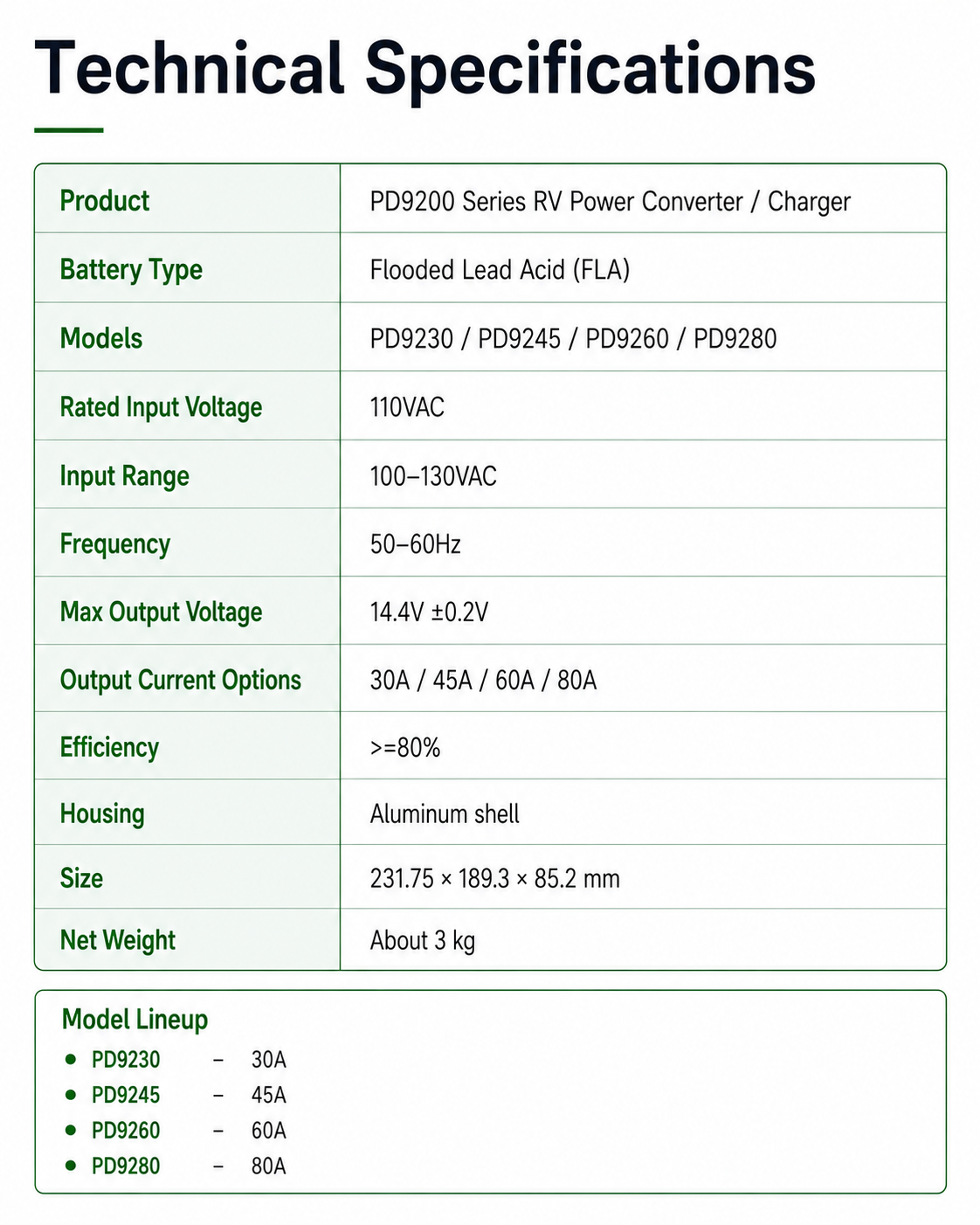

Designed for 12V recreational vehicle electrical systems, the PD9200 Series provides power conversion and intelligent charging for flooded lead-acid batteries. Four output current options—30A, 45A, 60A and 80A—are available to meet different RV power and battery charging requirements.

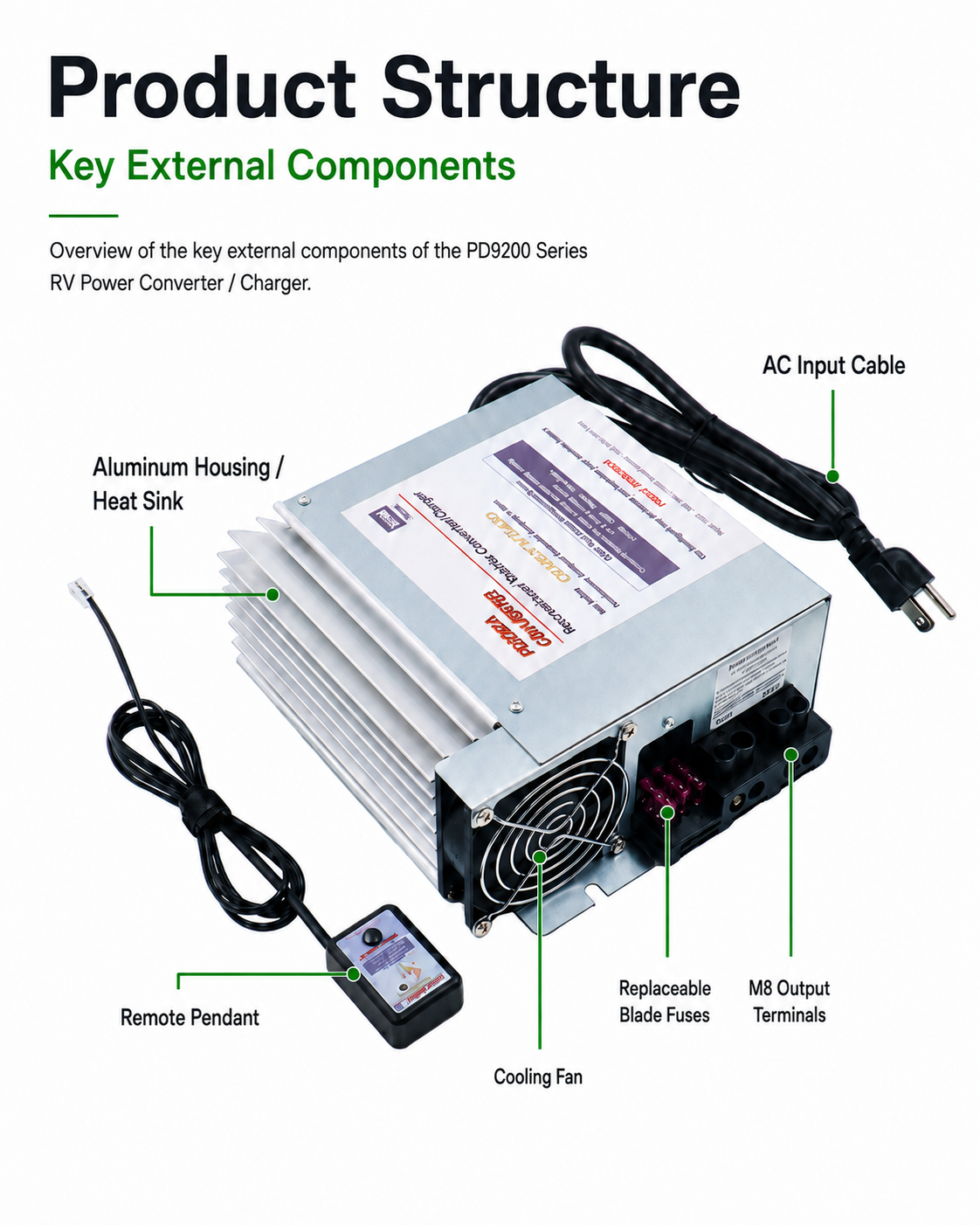

Remote Pendant & Charging Control

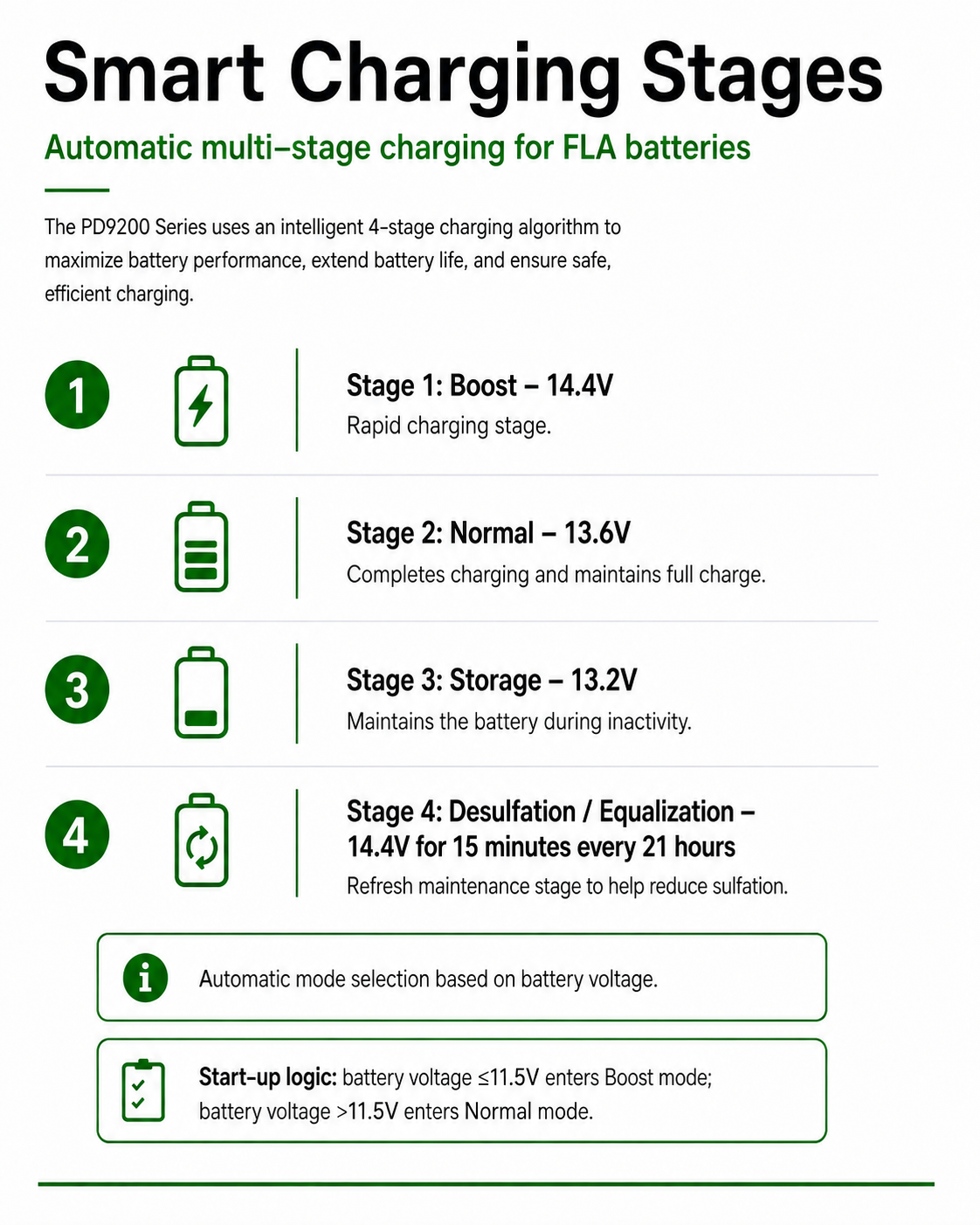

The built-in Charge Wizard automatically selects the charging mode according to battery condition. The included remote pendant also allows the charging mode to be manually selected when required.

Applications

Suitable for 12V flooded lead-acid battery systems used in RVs, motorhomes, campers and travel trailers with 100–130VAC input.Always follow the battery manufacturer’s recommended charging requirements before use.
